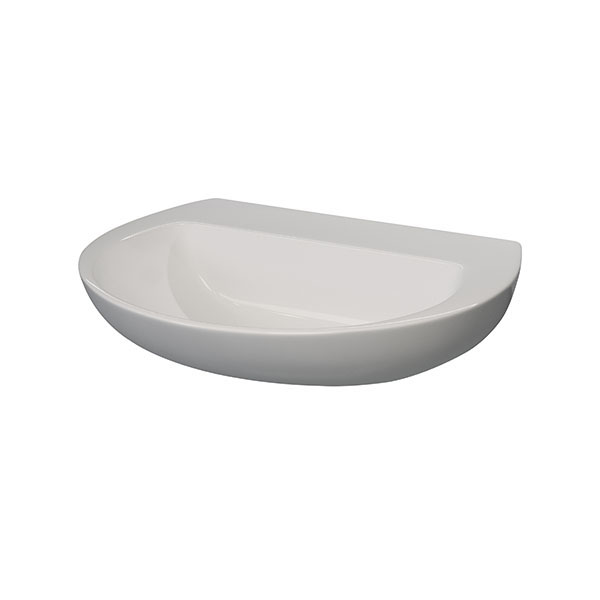

Atlas 50cm Medical basin

• Colour: White
• Material: Vitrous China
• Code: ATLBASMED0500UE
• Basin Weight: 9,9kg
• Size: 502 x 177 x 418mm depth

•  Atlas 50cm Medical basin Datasheet
•  Atlas 50cm Medical basin CAD Drawing
•  Atlas 50cm Medical basin Revit Drawing

Atlas 60cm Medical basin

• Colour: White
• Material: Vitrous China
• Code: ATLBASMED0600UE
• Basin Weight: 14kg
• Size: 600 x 210 x 492mm depth

•  Atlas 60cm Medical basin Datasheet
•  Atlas 60cm Medical basin CAD Drawing
•  Atlas 60cm Medical basin Revit Drawing

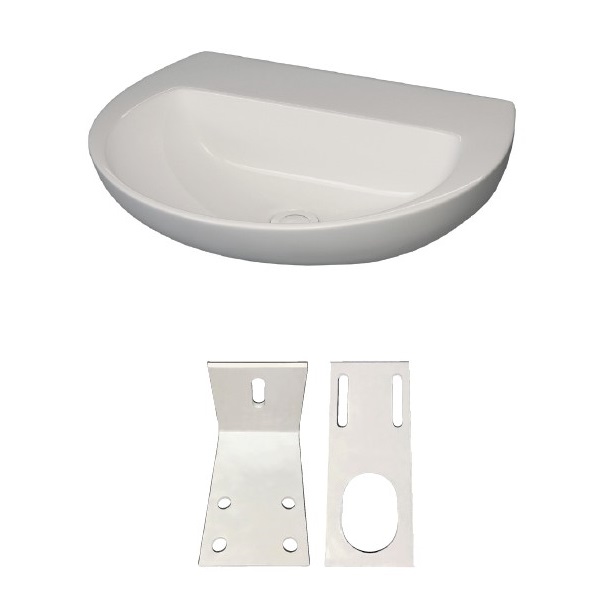

Atlas 50cm Medical basin with brackets

• Colour: White
• Material: Vitrous China
• Code: ATLDUOMED0500UE
• Basin Weight: 9,9KG
• Size: 502 x 177 x 418mm depth
• Bracket Colour: White
• Bracket Material: Powder Coated Steel
• Bracket Weight: 0,83KG

•  Atlas 50cm Medical basin with brackets Datasheet
•  Atlas 50cm Medical basin with brackets CAD Drawing
•  Atlas 50cm Medical basin with brackets Revit Drawing

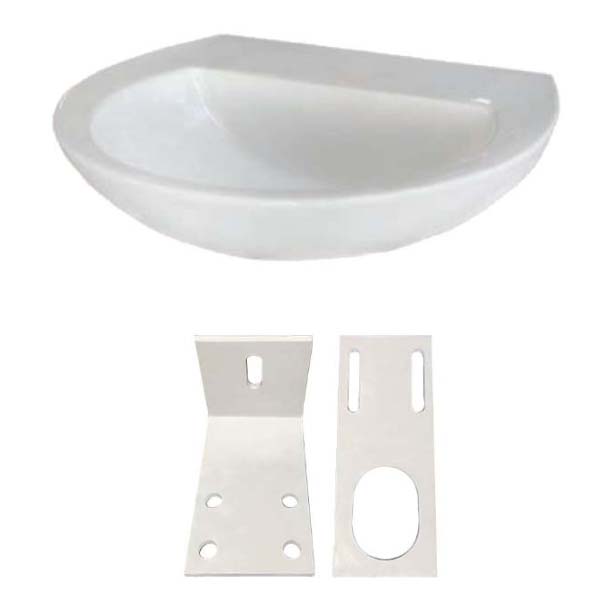

Atlas 60cm Medical basin with brackets

• Colour: White
• Material: Vitrous China
• Code: ATLDUOMED0600UE
• Basin Weight: 14KG
• Size: 600 x 210 x 492mm depth
• Bracket Colour: White
• Bracket Material: Powder Coated Steel
• Bracket Weight: 0,83KG

•  Atlas 60cm Medical basin with brackets Datasheet
•  Atlas 60cm Medical basin with brackets CAD Drawing
•  Atlas 60cm Medical basin with brackets Revit Drawing

Concealed Cistern

CONCEALED CISTERN:
• Material: HDPE tank
• Weight: 8,4kg
• Size: 455 x 80 x 762mm high

•  Concealed Cistern Datasheet
•  Concealed Cistern Flush Plate Installation Guide

Concealed Cistern for Back-To-Wall pan only

• Material: HDPE tank
• Weight: 4,4kg
• Size: 460 x 93 x 545mm high
• Code:LECCONCISBTW0BC
• For use with Back-To-Wall pans only

•  Lecico Concealed Cistern (BTW pan only) Datasheet
•  Lecico Concealed Cistern (BTW pan only) Installation Guide
•  Lecico Concealed Cistern (BTW pan only) CAD Drawing
•  Lecico Concealed Cistern (BTW pan only) Revit Drawing

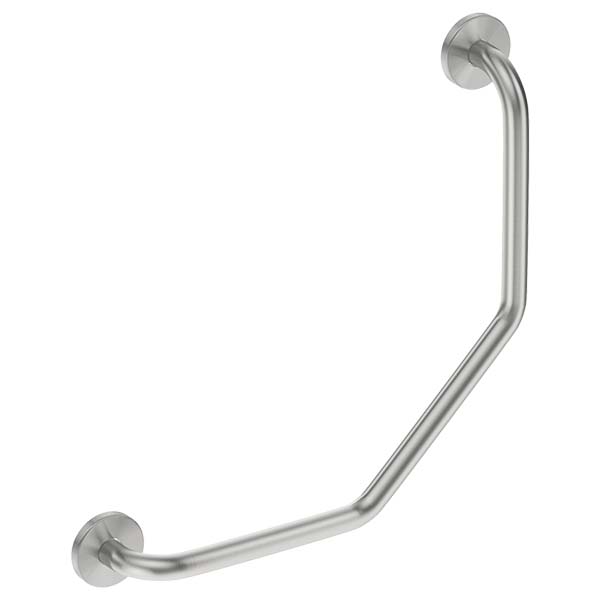

Dog Leg grab rail

• Colour: Silver
• Material: 304 Grade Stainless Steel
• Code: GRARAIDOG0604US
• Weight: 1,25kg
• Size: 604 x 32 x 106mm depth

•  Dog Leg grab rail Datasheet

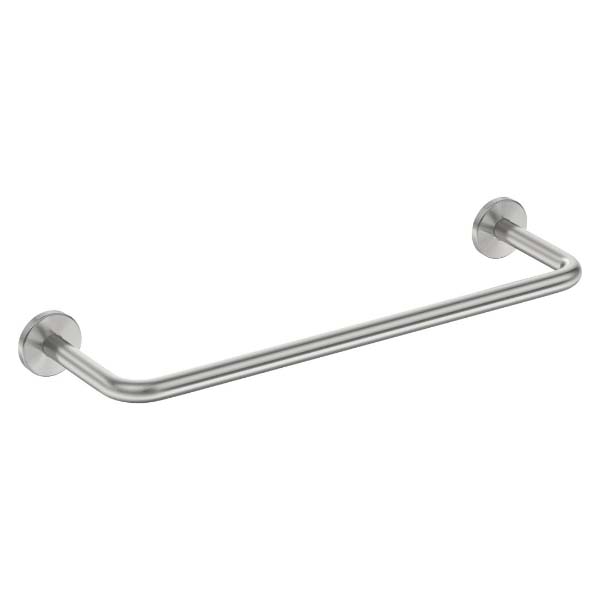

Cistern grab rail

• Colour: Silver
• Material: 304 Grade Stainless Steel
• Code: GRARAICIS0750US
• Weight: 1,34kg
• Size: 750 x 32 x 245mm depth

•  Cistern grab rail Datasheet

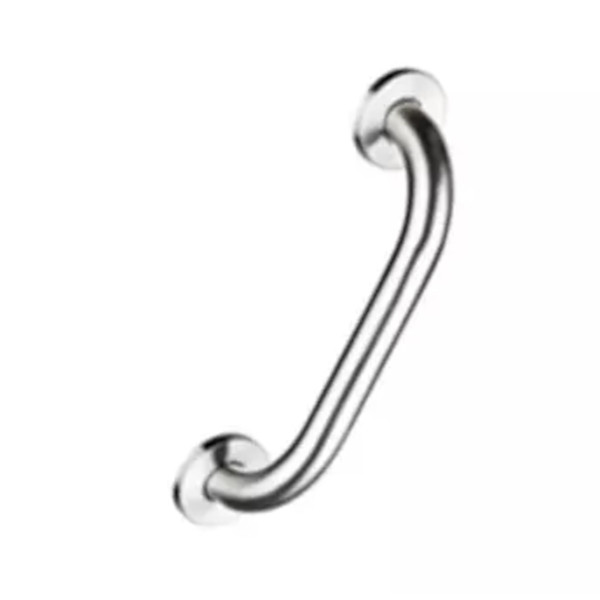

300mm Universal grab rail

• Colour: Silver
• Material: 304 Grade Stainless Steel
• Code: GRARAI0000300US
• Weight: 0,73kg
• Size: 392 x 32 x 106mm depth

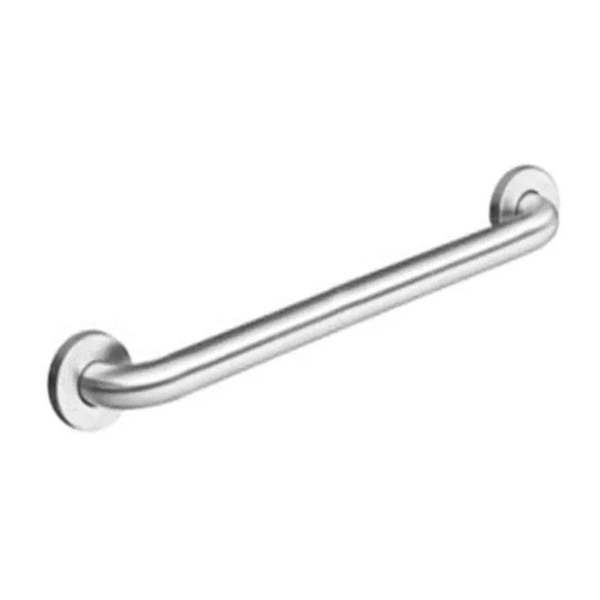

600mm Universal grab rail

• Colour: Silver
• Material: 304 Grade Stainless Steel
• Code: GRARAI0000600US
• Weight: 1,3kg
• Size: 692 x 32 x 106mm depth

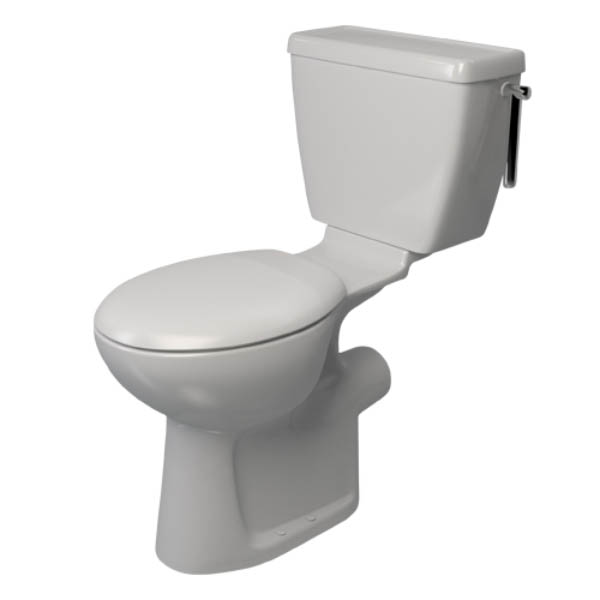

Atlas raised CC WC with side lever

• Colour: White
• Material: Vitrous China
• Product Code: PARSETCCB0NOSBE
• Pan Code: PARPANCCF0000UE
• Pan Weight: 18,37kg
• Cistern Code: PARCISSFL0NOMUE
• Cistern Weight: 14,25kg
• Mechanism Code: DUTMECPAR0CCMUS
• Seat Code: CHISEASTD0MDFUC (optional extra)
• Seat Weight: 1,53kg
• Size: 443 x 855 x 731mm depth

•  Atlas raised CC WC with side lever Datasheet
•  Atlas raised CC WC with side lever CAD Drawing
•  Atlas raised CC WC with side lever Revit Drawing

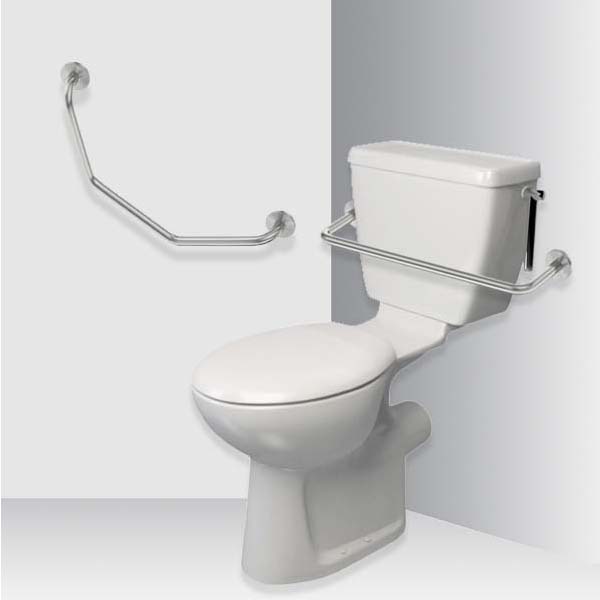

Atlas raised paraplegic CC WC with side lever and grab rails combo

• Colour: White
• Material: Vitrous China
• Code: PARSETCCB0RAIBE
• Pan Weight: 18,37kg
• Mech Code: DUTMECPAR0CCMUS
• Cistern Weight: 14,25kg
• Seat Code: CHISEASTD0MDFUC (optional extra)
• Seat Weight: 1,53kg
• Size: 443 x 855 x 731mm depth

•  Atlas raised paraplegic CC WC Datasheet
•  Atlas raised paraplegic CC WC CAD Drawing
•  Atlas raised paraplegic CC WC Revit Drawing

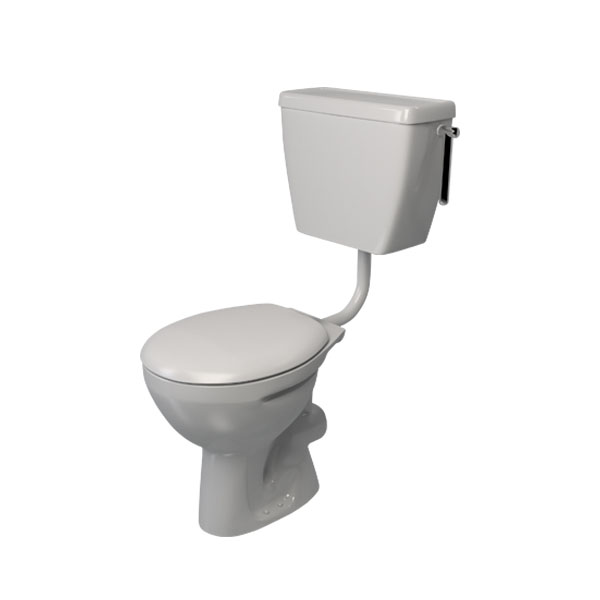

Atlas raised LL WC and ceramic cistern with side lever

• Colour: White
• Material: Vitrous China
• Pan Code: PARPANLLF0000UE
• Pan Weight: 18,37kg
• Cistern Code: PARCISLLS0NOMUE
• Cistern Weight: 13,8kg
• Mechanism Code: DUTMECPAR0LLMUS
• Seat Code: CHISEASTD0MDFUC (optional extra)
• Seat Weight: 1,53kg
• Size: 460 x 1033 x 790mm depth

•  Atlas raised LL WC and ceramic cistern with side lever Datasheet
•  Atlas raised LL WC and ceramic cistern with side lever CAD Drawing
•  Atlas raised LL WC and ceramic cistern with side lever Revit Drawing

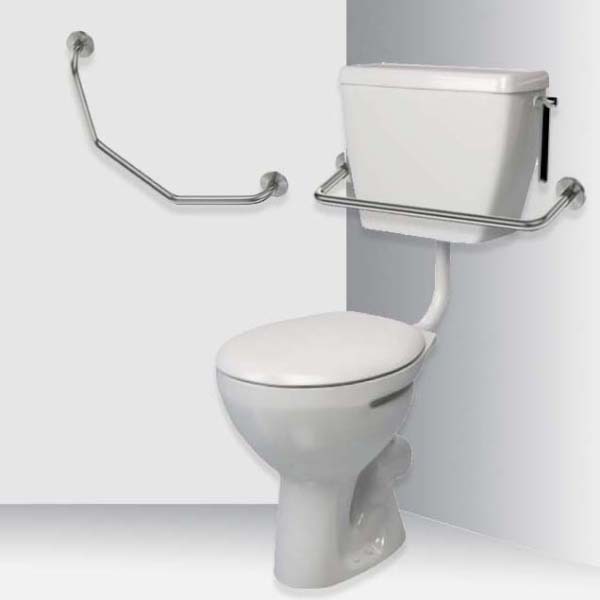

Atlas raised paraplegic LL WC with side lever and grab rails combo

• Colour: White
• Material: Vitrous China
• Code: PARSETLLB0RAIBE
• Pan Weight: 18,37kg
• Mech Code: DUTMECPAR0LLMUS
• Cistern Weight: 13,8kg
• Size: 460 x 1033 x 790mm depth

•  Atlas raised paraplegic LL Datasheet
•  Atlas raised paraplegic LL Revit Drawing

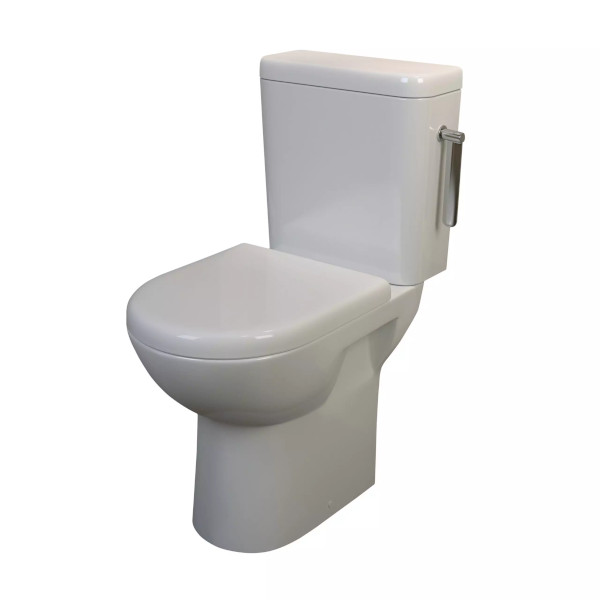

Comfort Assist Round close couple WC with side flush paddle handle

• Colour: White
• Material: Vitreous China
• Code: COMPARSETROUNBE
• Pan Weight: 19,9kg
• Cistern Weight: 12,32kg
• Size: 382 x 846 x 615mm depth

•  Comfort Assist Box Close Couple Round Pan Revit Drawing

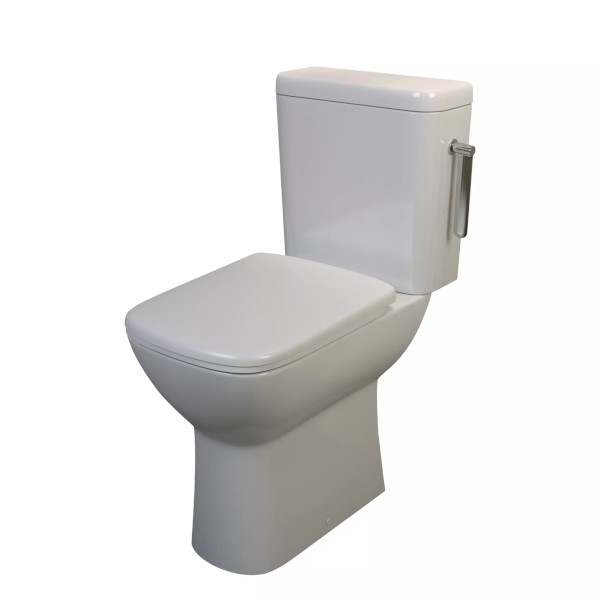

Comfort Assist Square close couple WC with side flush paddle handle

• Colour: White
• Material: Vitreous China
• Code: COMPARSETSQUABE
• Pan Weight: 21,1kg
• Cistern Weight: 12,32kg
• Size: 382 x 846 x 617mm depth

•  Comfort Assist Box Close Couple Square Pan Revit Drawing

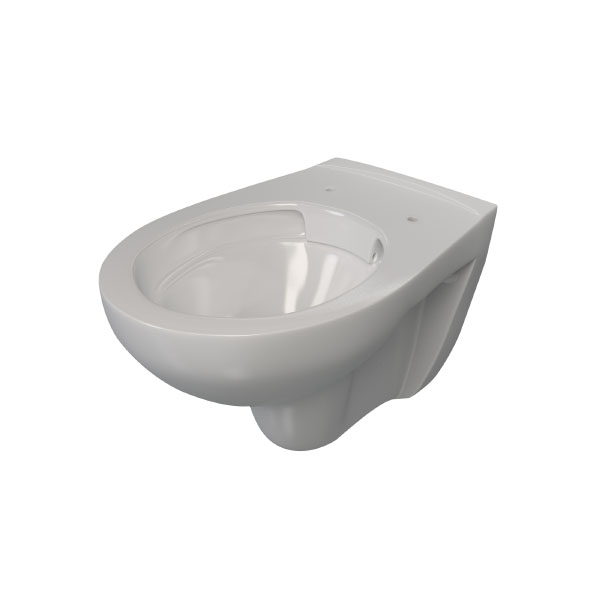

Geo Rimless wall hung pan

• Colour: White
• Material: Vitreous China
• Code: GEOPANWHU0RIMBE
• Weight: 17,25kg
• Size: 368 x 370 x 529mm depth

•  Geo Rimless wall hung pan Datasheet
•  Geo Rimless wall hung pan CAD Drawing
•  Geo Rimless wall hung pan Revit Drawing

Laguna back to wall paraplegic pan

• Colour: White
• Material: Vitrous China
• Pan Code: LAGPANBTW0PARUE
• Pan Weight: 23,78kg
• Size: 360 x 458 x 560mm depth

•  Laguna back to wall medical pan Datasheet
•  Laguna back to wall medical pan CAD Drawing
•  Laguna back to wall medical pan Revit Drawing

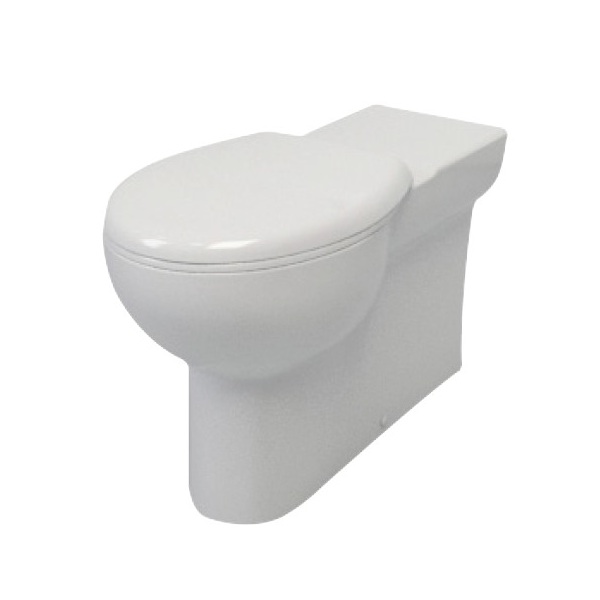

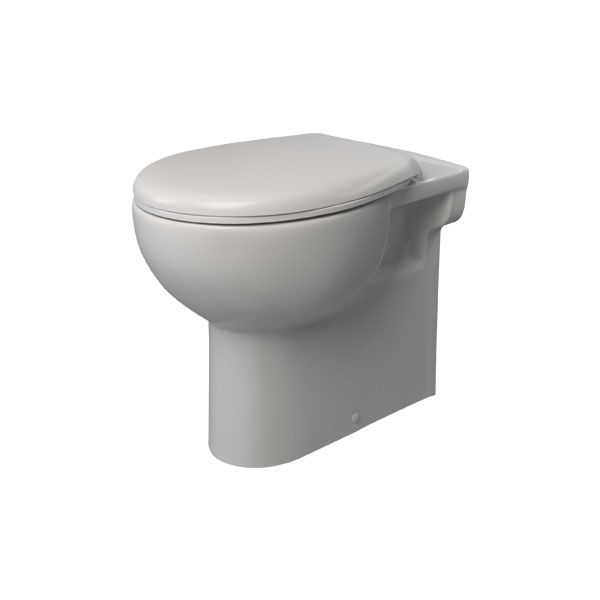

Laguna rimless back to wall raised height pan

• Colour: White
• Material: Vitrous China
• Pan Code:LAGPANBTW0RIMUE
• Pan Weight: 35,3kg
• Size: 360 x 475 x 745mm depth

•  Laguna Rimless back to wall Datasheet
•  Laguna Rimless back to wall CAD Drawing
•  Laguna Rimless back to wall Revit Drawing
